1300mm Heavy Duty Shuttleless Weaving Machine With ISO-9001 Certification

China Raoyang jinglian machinery manufacturing co. LTD certification
We want to buy a fully automatic shuttleless wire weaving machine from G.I.Wire, Aluminium Wire, SS Wires, Brass Wire etc. to produce 40 mesh to 20 mesh. Please quote the machines with all forward and backward linkage tools and equipments on Turn Key basis. We will send our technician for thee months training in your factory.You will arrange foodin

—— CHAMPION 7 MASONS LTD.

We are interested in hexagonal wire netting machine . Our raw material is polyester. Please quote us the price.

—— Guissela Colom

I'm Online Chat Now

1300mm Heavy Duty Shuttleless Weaving Machine With ISO-9001 Certification

1300mm Heavy Duty Shuttleless Weaving Machine With ISO-9001 Certification
1300mm Heavy Duty Shuttleless Weaving Machine With ISO-9001 Certification 1300mm Heavy Duty Shuttleless Weaving Machine With ISO-9001 Certification

Large Image :  1300mm Heavy Duty Shuttleless Weaving Machine With ISO-9001 Certification

Product Details:

Place of Origin: China
Brand Name: Jinglian
Certification: ISO-9001
Model Number: JWJ-01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: As requirements
Delivery Time: 15 days
Payment Terms: T/T
Supply Ability: 100 sets per month
Detailed Product Description
Color: Blue Wire Diameter: 0.4--1
Height: 1.5m Certification: ISO-9001
Company: Manufacter Warranty: One Year
High Light:

wire mesh equipment

,

industrial weaving machine

1300 mm Heavy Duty Shuttleless Weaving Mesh Machine





The Intrudution Of Jinglian Machinery



Raoyang Jinglian is a professional wire mesh weaving machine located in Rayoyang County, the manufacter is facousd on the wire mesh machine making for more than 10 tens, With the professional technical worker and the update techinolgy, We share the 40% market of the local market, Now we are exporting our stable  machine to overseas to help our customers to take the wire mesh market, During the time , We gathered a good reputation, That's make us more cofindent to give the best products and after-sale service to our customer.

Our machine is with update technology stable and precise, the wire mesh is no bad meshes, the wire mesh weaving machine is low center of gravity and low-noice.

Our wire mesh machine including semi-automatic and fully-automatic to meets the diffirent requirements from your customers.The wire mesh machine could produce all kind of wire mesh applicated in diffirent area at high quality.



The Appllication of the Wire Mesh Weaving Machine



(1) Machine adopts technique of shuttle less and straightaway weft Leading, automatic warp feeding and winding
Shedding are small and surfaces of woven screens are smooth
There is not any bright spot, bright trace and other defects on Fine screen
Machine can make light-grade in the standard of GB/T5330-2003
(2) Lower center of the gravity, good stability, low noise and Energy consumption, high efficiency
(3) Rational design, simple construction, easy to operate and Maintain
Application: used for industrial purpose, window doors and Poultry's guards, sieves, filters and other purpose
Character: single electromotor driving be suitable for soft metal, Stainless steel, flexible copper wire, galvanized wire
Notes: light metal shuttle less wire mesh machine (ZWJ-1300B/ZWJ-1600Q) after setting up can produce plain dutch Wire mesh, reverse plain dutch wire mesh and twill dutch wire mesh
Max mesh size can up to 400mesh



The Technical Parameters of the Wire Mesh Weaving Machine



Model Width
MM
Opening density
(Mesh)
Wire diameter(mm) Rotating speed
of crank shaft (r/minute)
Motor power(KW) Weight(T) Outside size(mm)
ZWJ1300B 1300 60-350 0.01-0.14 72 2.2KW380V,50HZ 3.25 2650x2900x1300
ZWJ1300D 1300 16-120 0.14-0.30 72 2.2KW380V,50HZ 3.25 2650x2900x1300
ZWJ1600B 1600 60-350 0.01-0.14 72 2.2KW380V,50HZ 3.25 2650x2900x1300
ZWJ1600D 1600 16-120 0.14-0.30 72 2.2KW380V,50HZ 3.25 2650x2900x1300
ZWJ-1300/1600 Heavy machine 1300/1600 2-16 0.1-0.55 40 5.5KW380V,50HZ 8-16 3500x4200x2500
ZZWJ-1300/1600BIGHeavy machine 1300/1600 2-20 0.5-1.6 40 5.5KW380V,50HZ 8-16 3500x4200x2500

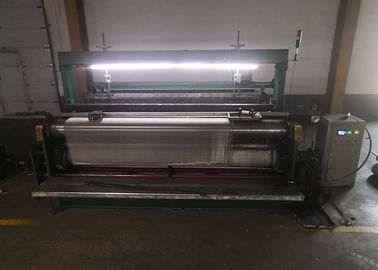

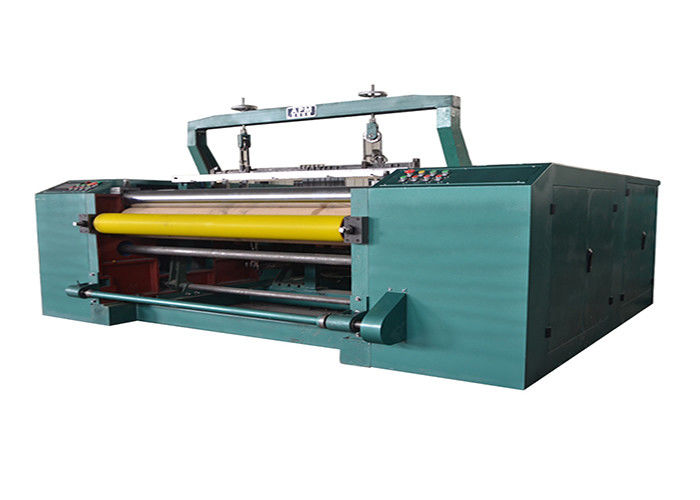

The Picture of the Wire Mesh Weaving Machine



1300mm Heavy Duty Shuttleless Weaving Machine With ISO-9001 Certification 0
