0.025mm 1300mm Width 200 Mesh Weaving Machine

0.025mm 1300mm Width 200 Mesh Weaving Machine
0.025mm 1300mm Width 200 Mesh Weaving Machine 0.025mm 1300mm Width 200 Mesh Weaving Machine

Large Image :  0.025mm 1300mm Width 200 Mesh Weaving Machine

Product Details:

Place of Origin: China
Brand Name: Jinglian Machinery
Certification: ISO9001
Model Number: JWJ-2003

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 1000 usd/set
Packaging Details: Plastic film outside
Delivery Time: 10-30 work days
Payment Terms: T/T
Supply Ability: 15 set/week
Detailed Product Description
Height: 1.4m Width: 2000mm
Speed: 70r/min Wire Diameter: 0.025mm
Raw Material: Stainless Wire Mesh Size: 300 Meshes
High Light:

200 mesh weaving machine

,

1300mm width mesh weaving machine

,

0.025mm Mesh Weaving Machine

CNC-control Semi-autmatic Eco-friendly 1300mm width 200 meshes stainless steel weaving Loom



1 :stainless steel weaving machine Main features



1 Adaptability to metal wires:Adapt to various imported and domestic metal wires.
2 Quite suitable for weaving of heavy and high density fabric.
3 The weft wire is linearly led in without any shuttle, the warp line feeding and take-up are carried out mechanically and automatically, the opening size is small, and the net surface is flat and orderly without any defects.
4 It works automatic stopping and displaying functions at any warp broken or weft broken.
5 The whole machine works stably in a low center of gravity and a low level of noise.
6 Rational design,simple construction,easy to operate and maintain.





2 :Instruction of the stainless steel wire mesh loom



Machine Type ZWJ-1300 ZWJ-1600 ZWJ-2100
Mesh Size 100meshes 100meshes 100meshes
Wire diameter 0.03mm  0.03mm 0.03mm
Feeding Weft Wire Speed 70r/min 70r/min 70r/min



3: The application of  stainless wire mesh



The stainles wire mesh would be usd in many filter industry like oil , food , chemical  industry ,

Also the wire mesh could be mosquto wire mesh, windown screen mesh , protective wire mesh





4 :The details of the stainless steel wire mesh weaving machine

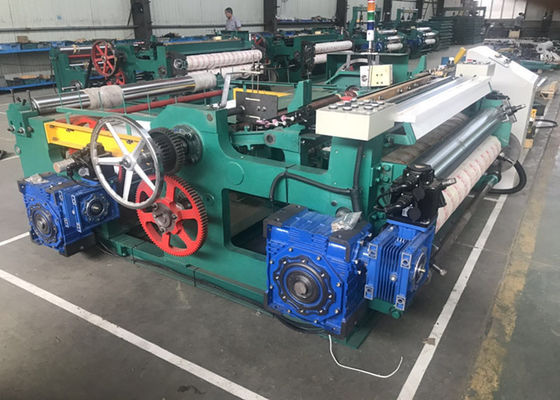

0.025mm 1300mm Width 200 Mesh Weaving Machine 0

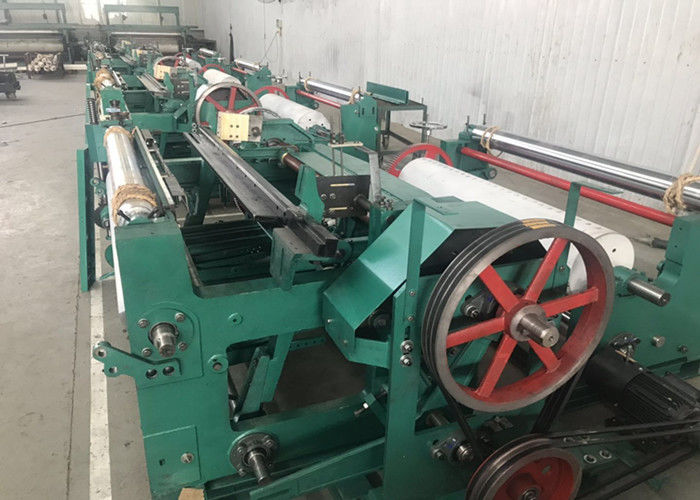

0.025mm 1300mm Width 200 Mesh Weaving Machine 1
