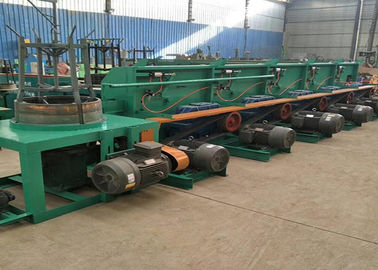

Automatic Pulley Type Continuous Wire Drawing Machine For Making Nail

Automatic Pulley Type Continuous Wire Drawing Machine For Making Nail
Automatic Pulley Type Continuous Wire Drawing Machine For Making Nail Automatic Pulley Type Continuous Wire Drawing Machine For Making Nail

Large Image :  Automatic Pulley Type Continuous Wire Drawing Machine For Making Nail

Product Details:
Place of Origin: Hebei, China (Mainland)
Brand Name: JingLian
Certification: IATF16949:2016
Model Number: ZWJ
Detailed Product Description
Suitable Material:: Low, Medium High Carbon Wire, Iron Wire Voltage: 380V/220V
Power(w): 7.5~160KW Transmission Ways: Gear Box
Warranty: One Year After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

straight line wire drawing machine

,

continuous wire drawing machine

Automatic pulley type wire drawing machine for making nail





Specifications



1. LW Series Automatic pulley type wire drawing machine for making nail
2. Drawing Metal Wire
3. Frequency Motor
4. High Speed
5. Easy Operating



Product Description


I. Composing of production line



Pay-off → Pulley type wire drawing machine → Horizontal take-up



II. Main technical parameters



No. Name Unit Line 1 Line 2
1 Name of machine   LW-4/560 LW-9/560
2 Way of drawing   Pulley-type Pulley-type
3 Number of block   4 9
4 Block diameter mm 4 * φ 560 9 * φ 560
5 Way of timing   AC frequency conversion timing AC frequency conversion timing
6 Motor power KW 4*30 9*18.5
7 Diameter of inlet wire mm φ6.5(φ6.5) φ4.0
8 Diameter of outlet wire mm φ4.0 φ1.6
9 Designed drawing speed m/min ≤ 110 ≤ 210
10 Way of control   Total digital Total digital
11 Material of inlet wire   High & Medium & Low carbon steel wire High & Medium & Low carbon steel wire
12 Way of pay-off   Rotating wheel pay-off Rotating wheel pay-off
13 Motor power of pay-off KW 11 11
14 Way of take-up   Φ630 horizontal spooler Φ630 horizontal spooler
15 Operation direction   From left to right From left to right
16 Power source   380V, 50HZ 380V, 50HZ

Automatic Pulley Type Continuous Wire Drawing Machine For Making Nail 0
